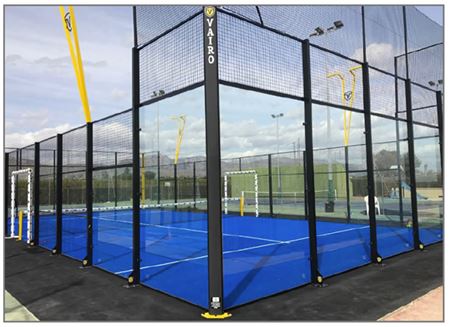

Padel Court

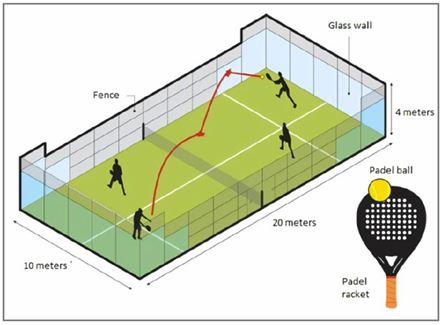

Padel court size: 10x20m; It requires windows or steel fences to surround the court. The back of the court and the beginning of the two sides are made of seine and glass windows (height: 4m). The remaining sides are made entirely of seine (height: 3m). Access to the pitch is on each side of the fence.

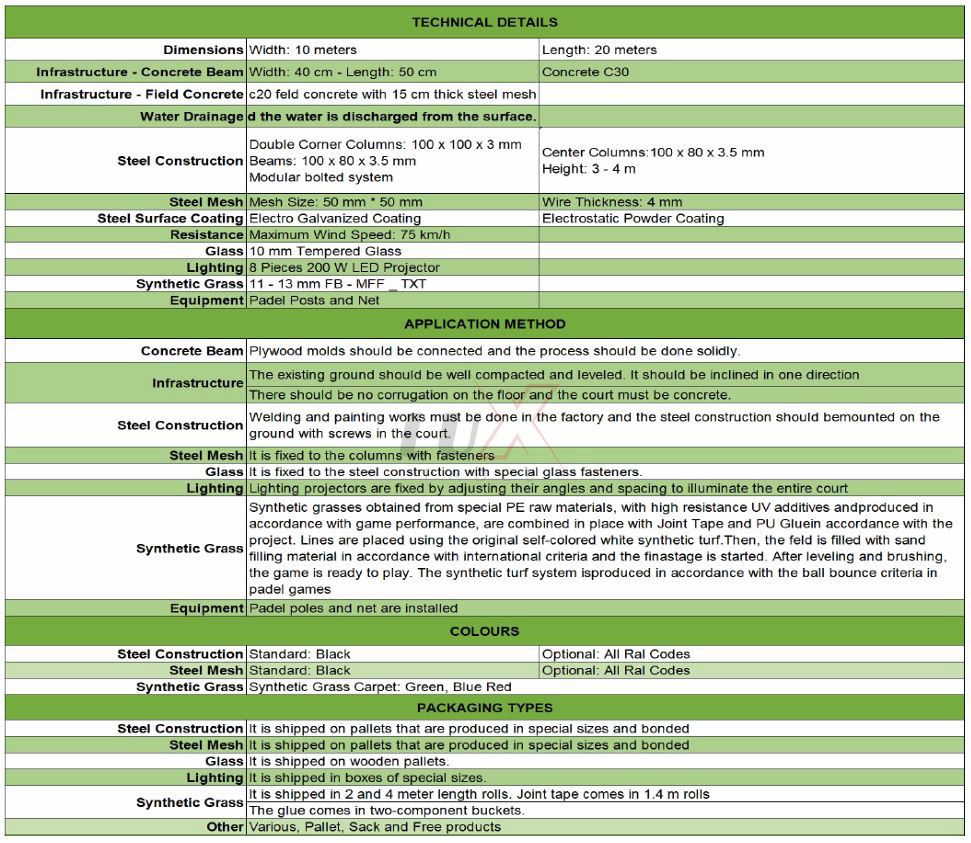

Technical Details

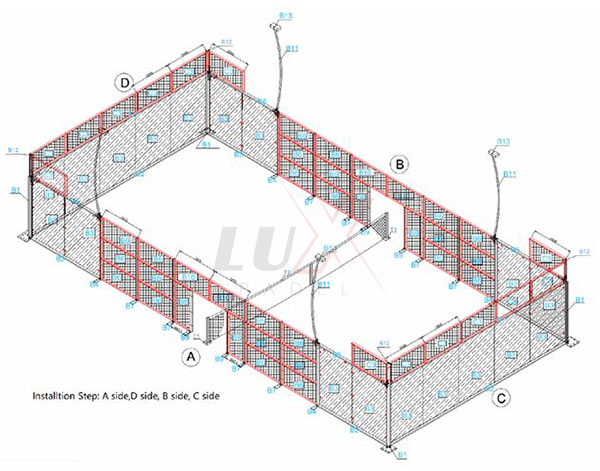

System Structure
- Square Column : 80*80*3mm, 3m height, B1-4pcs
- Column : 80*60*3mm, 3m height, B7-8pcs
- Gate Column : 80*60 *3mm, 2m height, B9-4pcs
- Lignt Column n: 80*60*3mm, B4-4pcs 50mm*50mm*2.5mm, B11 4pcs
- Cross Tube Upper bar: 80*80*3mm, 4m-B5-4pcs/5m-C1-4pcs Lower bar: 80*40*3mm, 4m-B2-4pcs/5m-C2-4pcs
- Metal Frame : 50mm*30mm*2mm, Wire diameter 4mm, Mesh size 50*50mm; 46 pcs
- Tempered Glass : 12mm thickness, B3-18pcs;
- Lighting : Philip 200W LED, B13-8pcs
- Net : T1/T2
Requirement of Padel Field
Shock absorption RF ≥20%
Vertical ball bounce ≥80%
Friction control 0.4≤ μμ≤ 0.8
Sand refill SiO2≥ 96%; CaO ≤ 3% Rounded edges Granulometry: 80% weight Φ16mm-1.25mm Free pile height: 2-3mm
Bangun Lapangan Padel Premium Sekarang!
Dapatkan lapangan padel berstandar internasional dengan desain elegan, material terbaik, dan instalasi profesional. Konsultasi gratis untuk kebutuhan Anda!
